Roof-to-Wall Clips and Straps: The Retrofit Insurers Reward

Quick answer: In a hurricane, wind does not just push on your roof — it lifts it. The metal connectors that tie each roof truss or rafter to the wall below are what resist that lift. Older homes often rely on toe-nails alone, the weakest connection inspectors record. Retrofitting those joints with hurricane clips, single wraps, or double wraps strengthens the continuous load path from roof to foundation, and in Florida it is one of the roof-to-wall features documented on a wind mitigation inspection that insurers use to apply premium credits. The hardware itself is simple. What earns credit — and real protection — is that every connection is the right type, correctly nailed, and documented.

This guide explains the connection types in the order inspectors rate them, how to find out what your home has now, what a retrofit actually involves, and the mistakes that leave homeowners with new hardware but no stronger rating.

Why the roof-to-wall joint fails first

Wind flowing over a roof creates uplift, much like air over an airplane wing. If the roof covering holds but the framing connection below it does not, whole sections of roof structure can separate from the walls. Once the roof opens, wind pressurizes the interior and rain follows — which is why post-storm investigations repeatedly trace catastrophic roof loss back to weak connections, not just weak shingles.

The continuous load path

Engineers talk about a continuous load path: uplift forces picked up by the roof must travel, connection by connection, down through the walls and into the foundation. Roof-to-wall connectors are the first link in that chain. A chain is only as strong as its weakest link — a principle Florida's wind mitigation form applies literally, as explained below.

It is not the same as roof deck attachment

Roof deck attachment is how the plywood or OSB deck is nailed to the trusses. Roof-to-wall connection is how those trusses or rafters are tied to the wall top plate. They are separate categories on a mitigation inspection, and improving one does not fix the other.

The four connection types, weakest to strongest

Florida's Uniform Mitigation Verification Inspection Form (OIR-B1-1802) sorts roof-to-wall connections into a clear hierarchy. Other coastal states use different forms, but the engineering ranking is the same everywhere.

• Toe-nails. The truss or rafter is attached to the top plate with nails driven at an angle. This was common in older construction and earns the least credit. A metal connector that is improperly installed or does not meet the form's minimum conditions can also be rated as toe-nails.
• Clips. A metal connector attaches the truss or rafter to the top plate but does not wrap over the top of the truss or rafter. To count in this category, the connector must meet minimum fastening conditions — including, for the Florida form, being secured with at least three nails — and be properly positioned and free of significant corrosion.
• Single wraps. One metal strap wraps over the top of the truss or rafter and is nailed on both sides in the required pattern. Wrapping over the top is what moves a connection above a clip: the strap resists uplift from above, not just from the side.
• Double wraps. Two qualifying straps, or a wrap arrangement secured on both sides of the truss or rafter, provide the highest-rated connection in this category.

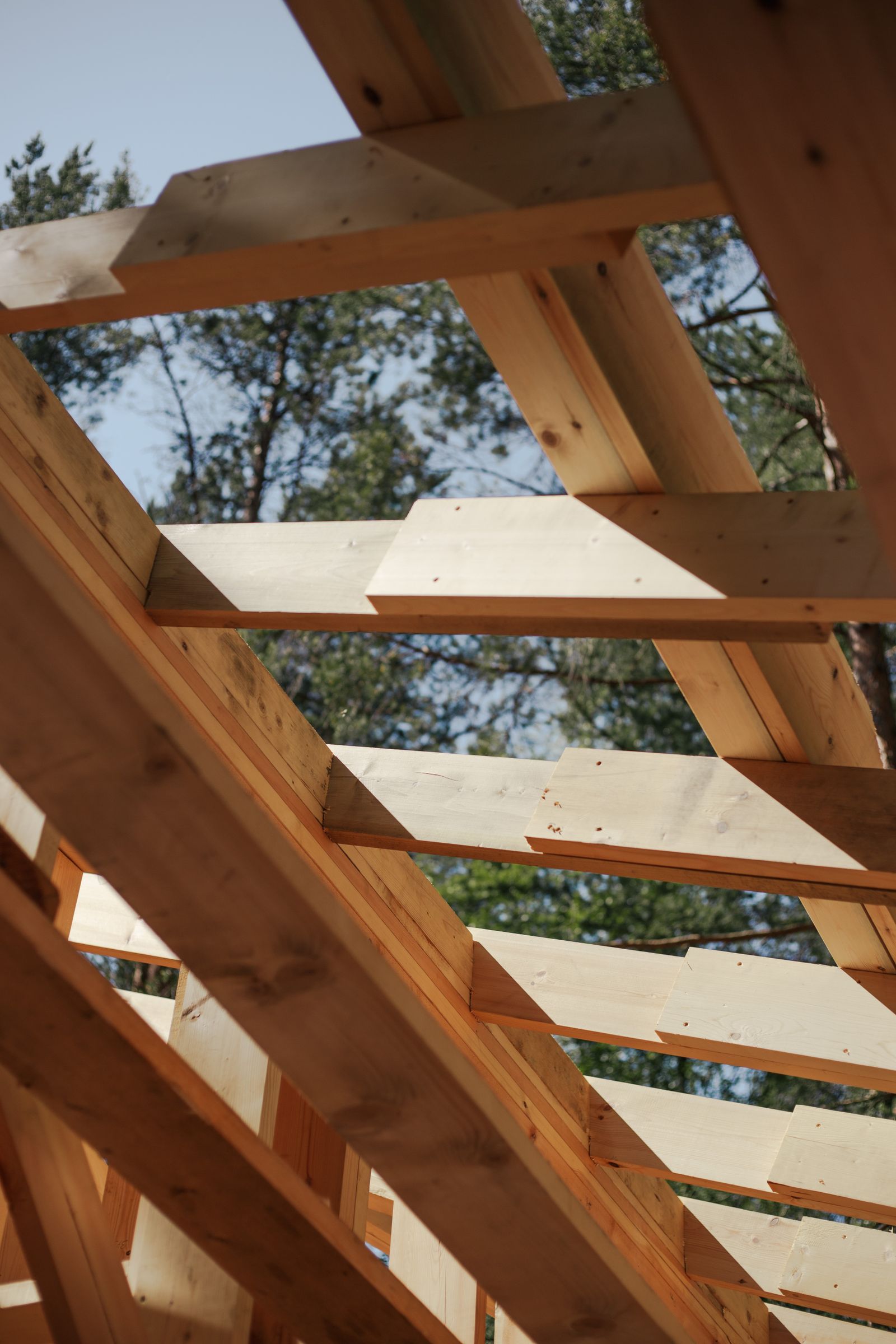

Roof framing from below: each rafter or truss end is a separate connection point that needs its own connector.

The weakest connection sets the rating

This is the rule homeowners most often miss: the Florida form evaluates the weakest roof-to-wall connection. Retrofitting most of the attic but leaving a stretch of toe-nailed trusses — for example over a garage or an addition — can leave the whole home rated at the weaker category. My Safe Florida Home's roof-to-wall guidance makes the same point for grant-funded work: qualifying work must be completed at every truss or rafter.

How to find out what your home has

A careful attic look

With a flashlight, look where each truss or rafter meets the outside wall — not at the metal plates on top of the wall used to separate wood from concrete in some older construction. Florida's own Hurricane Retrofit Guide checklist asks the same questions an inspector starts with:

• Is there a metal strap or clip connecting the rafter or truss to the top plate or wall?
• Is there a connector at every truss or rafter, or only at some?
• Do the straps wrap over the top of the rafters?
• Are nails present in the strap holes, and is the metal badly corroded?

Attics are hot, tight, and easy to fall through between joists. If you are not confident moving safely in yours, skip the DIY look — this is exactly what a wind mitigation inspection is for.

A wind mitigation inspection

In Florida, a licensed inspector, engineer, architect, or qualifying contractor completes the OIR-B1-1802 form, photographing connections in the attic. That form — not the contractor's invoice alone — is what you send your insurer. Outside Florida, ask your insurer what documentation it accepts before you schedule work; requirements vary by state and carrier.

What a retrofit actually involves

On new construction the connections are open and easy to see. On an existing home, the same work happens from inside the attic.

From the attic, or during a re-roof

On many existing homes, connectors can be added from inside the attic without removing the roof covering, working truss by truss along each exterior wall. Access is the main variable: low slopes, ductwork, and finished attic spaces make the job slower. The other natural window is during a re-roof, when the deck is open and connections can be reached from above. If a re-roof is already planned, ask the roofer to price the connection work at the same time rather than as a separate attic job later.

What "done right" looks like

• A connector at every truss or rafter along the exterior walls — not every other one.
• The correct connector for the framing: clips where a wrap cannot be fitted, wraps where they can, sized for the truss or rafter.
• Fasteners exactly as the manufacturer and the inspection form require — for Florida credit, at least three nails in the truss or rafter connection, with the required nail pattern on wraps.
• Corrosion-appropriate metal, especially in coastal air; a rusted-through strap is not a connection.
• Permits and a licensed contractor where your jurisdiction requires them, plus dated attic photos of the finished work.

Cost: what can honestly be said

There is no honest single price for this retrofit. The total depends on how many connections your roof has, how accessible the attic is, local labor rates, and whether the work is bundled with a re-roof. Any quote given without someone first identifying your current connection type and counting the trusses is a guess. Get the inspection first, then obtain itemized quotes for moving from your current category to the target category — that framing makes competing quotes comparable. In Florida, the My Safe Florida Home program offers free wind mitigation inspections and, for eligible homeowners, matching grants for improvements that include roof-to-wall connections; check current eligibility on the program's official site before assuming funding.

Insurance credit: how the reward actually works

Florida law requires residential property insurers to offer discounts for verified wind mitigation features, and roof-to-wall connection is one of the features rated on the OIR-B1-1802 form. Three honest cautions:

• There is no fixed statewide percentage for clips or wraps. The credit depends on your insurer's filed rates, your home's other features, and the category your inspection documents. Anyone promising a specific percentage before seeing your policy and inspection is guessing.
• Credits apply to the wind portion of the premium, not necessarily the whole bill.
• Hardware alone earns nothing. The completed work must meet the inspection criteria and be documented on a new mitigation inspection submitted to the insurer. Budget for that follow-up inspection as part of the project.

The practical sequence is: identify your current category, ask your insurer how a better category would affect your specific policy, complete the work at every connection, then obtain and submit an updated inspection. The same connectors also matter beyond Florida: the IBHS FORTIFIED Home standard — used by grant and discount programs in several Gulf and Atlantic states — is built around a strong, continuous load path, and roof connections are a core part of it.

How this fits with your other hurricane upgrades

Roof-to-wall connections protect the structure; opening protection protects the envelope. They solve different failure modes:

• If your windows and garage door are unprotected, compare priorities with our guide to impact windows vs hurricane shutters — a breached opening can pressurize the house even with strong roof connections.
• Use the lessons in 2026 hurricane season lessons before 2027 to sequence work before next season rather than after a storm is named.
• Check your state's overall risk picture on our Florida risk page and the hurricane risk hub.

Homeowner checklist

• ☐ Identify your current connection type (attic look or mitigation inspection)
• ☐ Confirm the weakest connection — including garage and addition sections
• ☐ Ask your insurer, in writing, how a clip/single-wrap/double-wrap rating would affect your policy
• ☐ Get itemized quotes covering every truss or rafter, with connector type and nail pattern specified
• ☐ Verify contractor licensing and permit requirements
• ☐ Photograph the finished connections before insulation or ductwork covers them
• ☐ Book a follow-up wind mitigation inspection and submit the form to your insurer
• ☐ Keep the inspection, invoice, and photos with your insurance documents

Frequently asked questions

Are hurricane clips and hurricane straps the same thing?

People use the terms interchangeably, but inspectors do not. On the Florida form, a clip is a metal connector that does not wrap over the truss or rafter; a wrap (strap) goes over the top and is nailed on both sides. Wraps rate higher than clips, and both rate higher than toe-nails.

Can I install clips or straps myself?

The hardware is sold in home centers, but the credit — and the structural value — depends on correct connector choice, placement, and nailing at every connection, verified by inspection. In Florida, mitigation work for credit must also meet permit and licensing rules. A DIY install that an inspector rates as toe-nails because of the nail pattern has bought hardware without buying protection.

Do I need to retrofit if my home is newer?

Newer homes built to recent Florida Building Code cycles generally already have engineered roof-to-wall connections, which your existing mitigation inspection should already reflect. The retrofit question is mainly for older homes — ask what your current inspection says before spending anything.

Will this one upgrade cut my premium by a set amount?

No set amount exists. The discount depends on your insurer's filed credits, the category change your new inspection documents, and your home's other mitigation features. Get your insurer's answer for your policy before you commission the work.

What if only part of my roof can be reached?

Because the weakest connection sets the Florida rating, a partial retrofit may not change your category. Tell contractors up front that the goal is every truss or rafter, and ask how inaccessible sections — over garages, vaulted ceilings, or additions — will be handled.

Official sources

• Ready.gov — Hurricanes: ready.gov/hurricanes
• IBHS — FORTIFIED Home guidance: ibhs.org/guidance/fortified-home
• My Safe Florida Home (inspections and grants): mysafeflhome.com
• Florida Division of Emergency Management: floridadisaster.org
• FEMA — Flood Insurance (roof work does not replace flood coverage): fema.gov/flood-insurance

Building codes, inspection forms, and grant eligibility change. Confirm the current requirements with your local building department, a licensed inspector, and your insurer before starting work.
